Compact spherical loudspeaker arrays

(sound-radiation synthesis)

Spherical arrangements of loudspeakers are suitable for creating variable-directivity radiation of sound. The research at IEM has about this topic has been started in Oct 2005, and now we are proud to announce that there is a high-quality product that just came to life in 2016:

Wortbildmarke von Sonible und IEM zum gemeinsamen IKO-Projekt.

IEM-SONIBLE



Prototype systems that have been developed over the years at IEM are a 60cm (diameter) icosahedral loudspeaker array (20 channel) and a smaller 17cm (diameter) 16-channel array based on a special sampling scheme on the sphere.

We thank Josef Schalk and the carpenter Hermann Deutscher for their generous effort to make a solid construction.

These systems can create a set of spherical harmonics of low orders perfectly, while the higher orders alias but are suppressed by the wave propagation. On the surface, the reproduction with all the aliasing looks as animated below, Fig. 1.

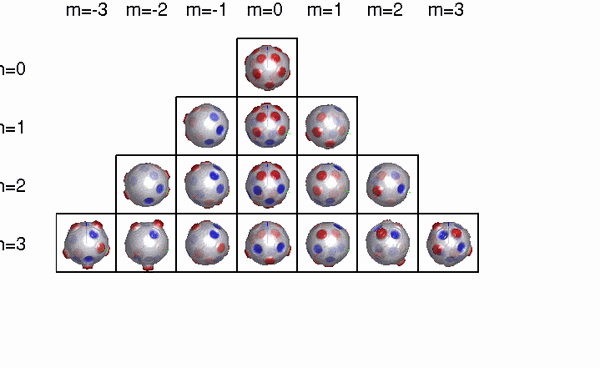

Fig. 1: Surface vibration of spherical loudspeaker arrays that create spherical harmonics.

Acoustic measurements on compact spherical loudspeaker arrays

Together with Balázs Bank (this report is by Balázs) the most precise acoustical measurements have been done on both spherical loudspeaker arrays, especially regarding the acoustic centering.

Date: 24-19.08.2011
Location: the CUBE at the Institure for Elcectronic Music and Acoustics, Graz (room is not anechoic)


MEASUREMENT PRINCIPLE

The speaker is mounted on a turntable, and its response is recorded by an arc of microphones (semircle), thus a full turn of the speaker gives the response on a full sphere. The loudspeaker units are excited by an exponential sweep separatelly. Since the room is not anechoic, only the early parts of the impulse responses can be used.

MEASURED SPEAKERS

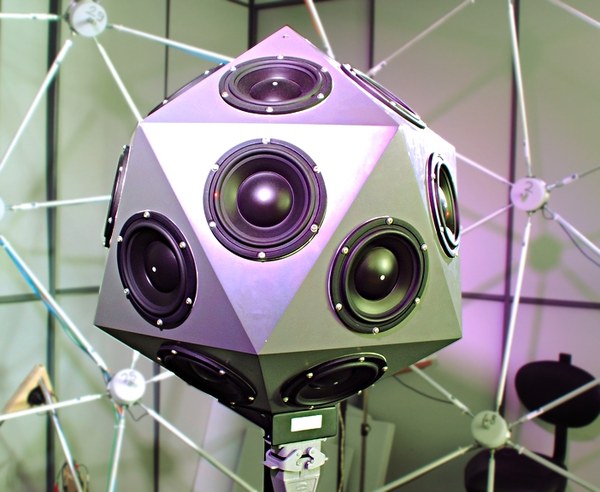

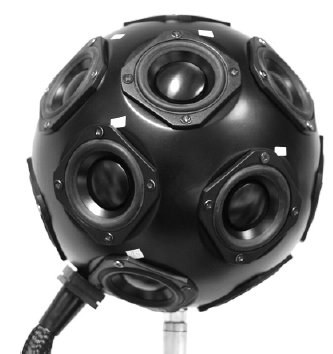

Icosahedral loudspeakerSpherical loudspeaker

icosahedral_array.jpg kerscher_array.jpg
20 loudspeakers Morel CAW 638 6.5 inch 16 loudspeakers Peerless tympani 830983 2 inch
28.5cm acoustically effective radius
33cm circumsphere radius (touching the corners)
8.5cm spherical radius
estimated usable frequency range:
  • 0th order: 30-700Hz
  • 1st order: 40-700Hz
  • 2nd order: 120-700Hz
  • 3rd order: 230-700Hz
  • with spat. aliasing: 700-4000Hz
estimated usable frequency range:
  • 0th order: 150-2000Hz
  • 1st order: 170-2000Hz
  • 2nd order: 450-2000Hz
  • 3rd order: 800-2000Hz
  • with spat. aliasing: 2000-8000Hz


MEASUREMENT DESCRIPTION
18 Behringer ECM8000 microphonoes are attached to a wooden arc having the radius of 70 cm. The microphones are positioned with a distance of 10 degrees, starting at 5 degrees zenith, and stopping at 175. The microphones are covered by 4cm thick disks of absorbent foam and also spaces between these disks were filled up with smaller pieces, in order to decrease the reflections from the 1.5cm thick wooden arc plate they are mounted on (see Fig. 2.). The speakers were rotated by 10 degrees increment at the vertical axis, giving 10 degrees resolution both in azimuth and zenith angles.

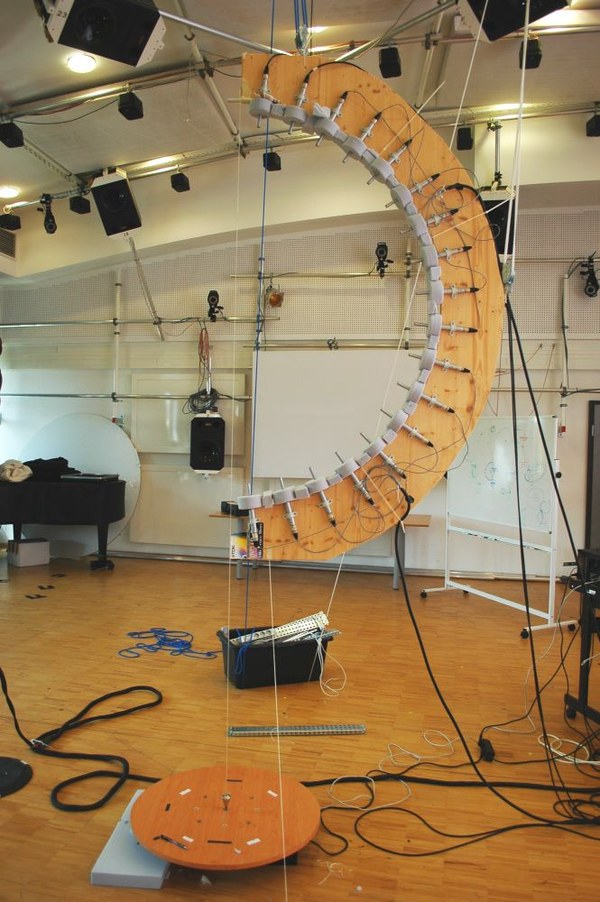

Fig. 2: Positioning of the microphone arc and the turntable by the use of a pendulum.

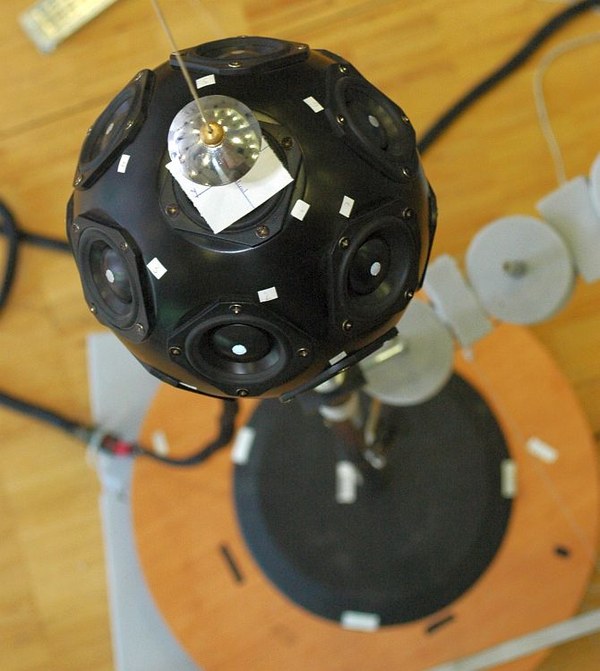

The arc was hanging from the ceiling by ropes, and its perpendicularity was adjusted by the use of a pendulum. A large circular plate was screwed to the turntable, and first this was positioned with a pendulum so that the pendulum was hitting the central whole (see bottom of Fig. 2.). This roughly centered the rotation axis. Then the speaker was mounted on this plate with its own stand, so that the stand could be freely moved on the plate. This additional degree of freedom helped to correct the errors coming of the non-verticality of the speaker stand, which would otherwise result in a circular motion of the speaker.

Fig. 3: Setting of the rotation axis and speaker position by the help of a paper scale and a pendulum.

The procedure for positioning the speaker and turntable position is as follows:
By the help of a small piece of paper with an x-y scale, we measure the x and y position of the speaker with respect to the pendulum hanging from the top of the arc, giving x0 and y0 (see Fig. 3). Then, the speaker is rotated by 180 degrees, and x180 and y180 are obtained. Now the turntable (center of rotation) should be moved by (x0+x180)/2 and (y0+y180)/2. When this is done, the speaker itself is moved to the center by moving the speaker stand, so that the pendulum is at the zero position of the paper scale. We made more iterations until the top of the speaker (zero position of the paper scale) was in around 1-2mm precision compared to the edge of the pendulum. The height of the speaker was adjusted by the help of a laser pointer, and here the precision is more about in the range of 0.5 cm.

The loudspeakers were fed with a signal coming from 2-3 8xio RME converters via RME MADI interface, RME MADI-multiplexer and through 2-3 8 channel Bittner-Audio 8x100W amplifiers. The microphone signals were picked up by Behringer PRO-8 ADA-8000 preamps + converters, and sent via ADAT through the MADI-multiplexer to the RME MADI interface.

The measurement was controlled by the PD patch supersweep.pd. We generated a logarithmic sweep (supersweep.m) of 44100 samples, starting from a zero crossing at 50 Hz and stopping at 22050Hz. The sampling rate was 44.1 kHz. For the small loudspeakers, 4th order Butterworth high-pass filters with a cutoff frequency of 300 Hz (supersweep16.pd) were inserted in the signal path in PD.

The microphones channels were calibrated by putting a Cirrus CR511E 1kHz calibrator to each microphone, giving a 1kHz sinewave at 94 dB SPL.



ICOSAHEDRON MEASUREMENT
The speaker is put on an aluminum podest, and the speaker stand is opened to the maximum. As a result, the distance of the lowest microphone from the turntable was 1 m, meaning 2 meters of reflection-free path. This leads to 6ms, (freq. resolution is 170 Hz). Although the podest and the turntable were covered by damping material, so the reflections are might not be that severe, it is safer to consider only the first 6 ms (reflection-free part). The sampling frequency of the impulse responses is 11.025 kHz.



SPHERICAL LOUDSPEAKER MEASUREMENT
The distance of the lowest microphone and the turntable was 1.2 m, giving 2.4 m (7ms) reflection-free path. Note that the mounting screw is on the way of microphone 18 at azimuth 80 degrees and around (see Fig. 4). When computing spherical harmonics, this mic should be weighted lower at around 80 deg rotation. The sampling frequency of the impulse responses is 22.05 kHz.

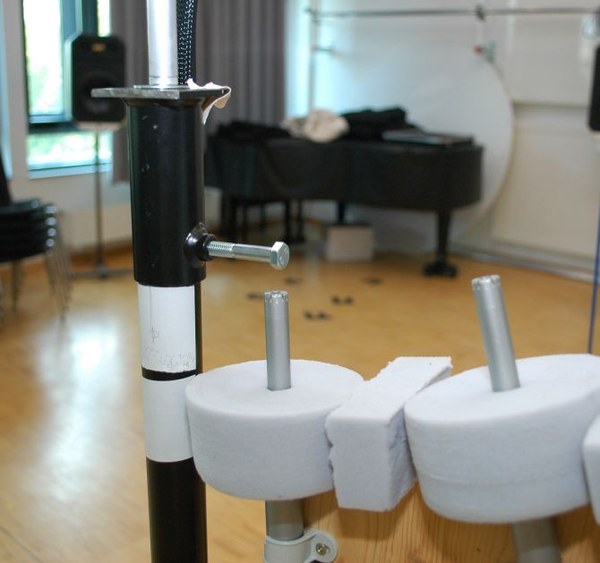

Fig. 4: The screw in the way of microphone 18 at 80 degrees rotation.

(Measurement report by Balázs Bank, Sep. 2011.)
